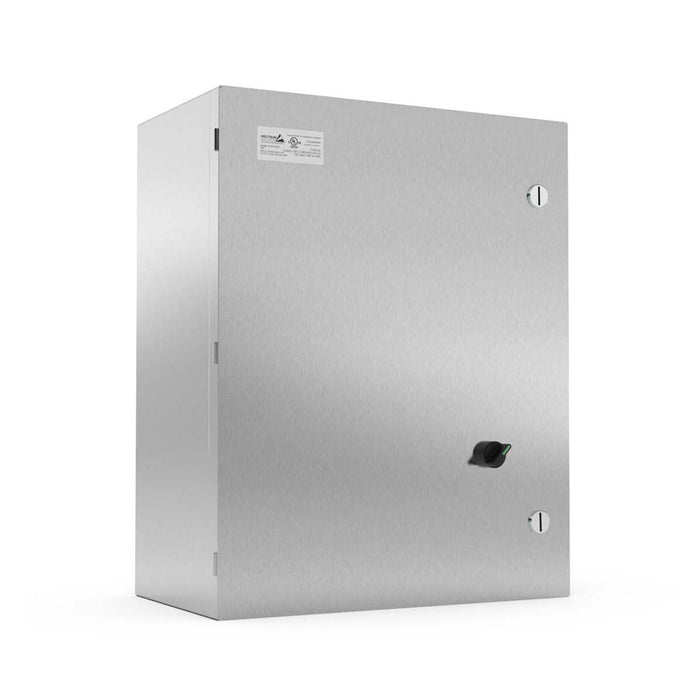

Spectrum 1313-2-SPH - Class I Division 2- UL Listed Industrial Control Panel
Spectrum 1313-2-SPH is a UL listed industrial control panel, hazardous-area certified for Class I, Division 2, groups B,C,D T4. The control panels allows for injection of up to (2) 30W PoE+ devieces - *no fiber breakout *note: SFP module not supplied. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -25°C to +40°C (-13°F to +104°F), making it perfect for high demanding installations.
Features:
- IEEE 802.3at PoE+ to supply 30 watts per port
- Supports IEEE 802.3af
- Supports dual speed for SFP slot
- Link pass through
- Operating Temperature -25°C to +40°C
- Class I
- Division 2
- Groups B, C, D
- Full/half-duplex flow control
- Auto-MDI/MDIX
- Auto-Negotiation
- Store-and-forward transmission
- 10K byte jumbo frames
General:
-
Dimensions - 406.4 x 508 x 225.425 mm ( 16 x 20 x 8.875 in. )
-
Weight - 19.05 kg ( 42 lbs )
-
Material - 316 Stainless Steel
-
Operating Conditions: -25°C to +40°C
-
Storage Conditions: -40°C to +85°C
-
UL Listed File Number: E481600
-
Input - 120VAC 60HZ 10A
-
Output - IEEE 802.3at 60W
-
Power consumption - 3.53 Watts (No PoE), 63.5 Watts (2 ports PoE)
-
Status LEDS - Copper Port: Link/ACT, Copper Port: Gigabit Transmission SFP Port: Link/ACT, PoE Power, Input Power
Explosion-proof Certifications:
- Class I
- Division 2
- Groups B,C,D
Certifications:
-
CE Mark, FCC
-
Class A, EN55011, EN55022/EN61000-6-4
-
(EMC), EN55024/EN61000-6-2 (Immunity),
-
EN61000-4-2 (ESD), EN61000-4-3 (RS),
-
EN61000-4-4 (EFT), EN61000-4-5 (Surge),
-
EN61000-4-6(CS) EN61000-4-8 (Magnetic
-
Field), IEC60068-2-27(Shock), IEC60068-2-32
-
(Free fall), IEC60068-2-6 (Vibration)
Standards:
-
IEEE 802.3
-
IEEE 802.3x
-
IEEE 802.3u
-
IEEE 802.3ab
-
IEEE 802.3at
-
IEEE 802.3z
-
IEEE 802.3af
Warranty - 3-year limited warranty.
