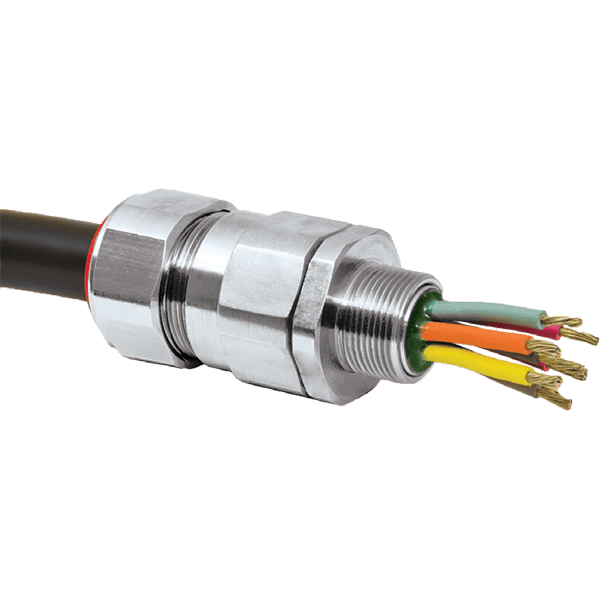

TECHNICAL CLASSIFICATION |
|
DESIGN SPECIFICATION |
BS 6121:Part 1:1989, IEC 62444, EN 62444 |
MECHANICAL CLASSIFICATION* |
Impact = Level 8, Cable Anchorage = Type B |
ENCLOSURE PROTECTION |
IK10 to IEC 62262 (20 joules) Brass and Stainless Steel only |
ELECTRICAL CLASSIFICATION* |
Category B (Category A when used with braid, tape or pliable wire armour cables) |
INGRESS PROTECTION RATING** |
IP66, IP67 and IP68**** |
NEMA RATING** |
Type 4X |
DELUGE PROTECTION COMPLIANCE |
DTS01 : 91 |
CABLE TYPE |
Screened Flexible (EMC) Wire Braid (e.g. CY / SY), Pliable Wire Armour (PWA), Steel Tape Armour (STA), Wire Braid Armour (e.g. SWB), Aluminium Strip Armour (ASA), Armoured and Jacketed*** |
ARMOR CLAMPING |
Detachable Resin Tube / Cone and AnyWay Universal Clamping Ring |
SEAL MATERIAL |
CMP SOLO LSF Halogen Free Thermoset Elastomer / RapidEx Resin Barrier |
SEALING TECHNIQUE |
CMP Outer Load Retention Seal and Inner RapidEx Barrier Seal |
SEALING AREA(S) |
Inner RapidEx Barrier Seal and Outer Sheath |
CABLE GLAND MATERIAL |
Brass, Electroless Nickel Plated Brass, Stainless Steel, Aluminium |
* Mechanical and Electrical Classifications applied as per IEC 62444 and EN 62444 |
|
** When CMP installation accessories are used. Refer to www.cmp-products.com for further information |
|
***Where the cable is permitted by code (NEC and/or CEC) **** IP68 tested to a minimum depth of 30 metres for 12 hours, alternative depths / durations can be provided upon request. |
|
|
|
GLOBAL PRODUCT CERTIFICATION |
|
ATEX CERTIFICATE |
CML18ATEX1325X, CML18ATEX4317X |
UKEX CERTIFICATE |
CML 21UKEX1214X, CML 21UKEX4215X |
CODE OF PROTECTION |
^ II 2G 1D, Ex db IIC, Ex eb IIC Gb, Ex ta IIIC Da ^ II 3G, Ex nR IIC Gc ^I M2 Ex db I Mb*, Ex eb I Mb* |
COMPLIANCE STANDARDS |
EN 60079-0,1,7,15,31 |
cCSAus CERTIFICATE |
2288626 |
IECEx CERTIFICATE |
IECEx CML 18.0182X |
CODE OF PROTECTION |
Ex db IIC Gb, Ex eb IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da, Ex db I Mb*, Ex eb I Mb* |
COMPLIANCE STANDARDS |
IEC 60079-0,1,7,15,31 |
CSAus CODE OF PROTECTION |
Class I, Div 1 and 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Type 4X; Oil Resistance II; Class I, Zone 1, AEx d IIC Gb, AEx e IIC Gb; Class I,Zone 2, AEx nR IIC Gc; Class I, Zone 20, AEx ta IIIC Da |
cCSA CODE OF PROTECTION |
Class I, Div 1 and 2, Groups A, B, C, and D; Class II, Div 1 and 2, Groups E, F, and G; Class III, Div 1 and 2; Type 4X; Oil Resistance II; Ex d IIC Gb, Ex e IIC Gb, Ex nR IIC Gc, Ex ta IIIC Da |
COMPLIANCE STANDARDS |
CAN/CSA-C22.2 No 0, 18, 25, 30, 174, 94, CSA-C22.2 No 60079-0,1,7,15,31, CAN/CSA-E61241-1-1, ANSI/UL 514B, 50, 2225, ANSI/ISA 60079-31, UL60079-0,1,7,15 |
EAC CERTIFICATE |
Check website for latest certificate number |
ECAS CERTIFICATE |
20-02-05624 |
RETIE APPROVAL NUMBER |
3866 |
CCC CERTIFICATE |
2.0203223130032E+15 |
MARINE APPROVALS |
LRS: 01/00172, DNV: TAE000000Y, ABS: 20-LD1948801-PDA, BV: 43180 |
UkrSEPRO CERTIFICATE |
CЦ 19.0371X |
CCOE / PESO (INDIA) CERTIFICATE |
P444949 |
INMETRO APPROVAL |
TÜV 12.2073X |
*Aluminium alloys are not permitted in Group I mining applications |
|
**Where the cable is permitted by code (NEC and/or CEC) |
