Image sensor
1/1.8”
progressive scan RGB CMOS
Pixel
size 2.9 µm
Lens
Varifocal,
9–50 mm, F1.5
Horizontal
field of view: 46°–9°
Vertical
field of view: 26°–5°
Minimum
focus distance: 3 m (9.8 ft)
Autofocus,
i-CS lens, IR corrected, remote zoom and focus, P-Iris control
Day and night
Automatic
IR-cut filter
Hybrid
IR filter
Minimum illumination
4
MP 25/30 fps with advanced WDR imaging technology and Advanced low-light
technology
Color:
0.05 lux at 50 IRE, F1.5
B/W:
0.01 lux at 50 IRE, F1.5
4
MP 50/60 fps with Advanced low-light technology
Color:
0.1 lux at 50 IRE, F1.5
B/W:
0.02 lux at 50 IRE, F1.5
0
lux with IR illumination on
Shutter speed
1/47500
s to 1 s
Detection range
Up
to 50 m (164 ft) day and night
IR illumination
IR
with power-efficient, long-life 850 nm IR LED’s with adjustable angle of
illumination and intensity. Range of reach 50 m (164 ft) or more depending on
the scene.
Vehicle speed
Up
to 200 km/h (125 mph) with optional edge analytics
More
than 200 km/h (125 mph) available with optional server based analytics
Coverage
Up
to two lanes with optional edge or server based analytics
Supports
front and rear license plate capture
Installation
Center
or side mounted
Mounting
height: Up to 12 m (39 ft)
Lateral
distance from road: Up to 7 m (23 ft)
Camera
detects tilt and roll angle automatically
Built-in
traffic camera installation assistant optimizes video settings based on
mounting height, distance to vehicle, and expected vehicle speed
Profiles
Road
monitoring
Area
monitoring
Sensor
FMCW
(Frequency Modulated Continuous Wave)
Object data
Object
type (classes: humans, vehicles, unknown), range, direction, velocity
Frequency
Channel
1: 61.00–61.25 GHz
Channel
2: 61.25–61.50 GHz
RF transmit power
<100
mW (EIRP)
License
free. Unharmful radio-waves.
Recommended mounting
height
3.5–12
m (11–39 ft)
Recommended mounting
tilt
Up
to 18°
Detection range
Road
monitoring profile: Up to 150 m (492 ft) when detecting a vehicle
Area
monitoring profile: 5–60 m (16–200 ft) when detecting a person
5–90
m (16–300 ft) when detecting a vehicle
Radial speed
Road
monitoring profile: Up to 200 km/h (125 mph)
Area
monitoring profile: Up to 55 km/h (34 mph)
Field of detection
Horizontal:
95°
Speed accuracy
+/-
2 km/h (1.25 mph)
Distance accuracy
Road
monitoring profile: 0.8 m (2.6 ft)
Area
monitoring profile: 0.5 m (1.6 ft)
Angle accuracy
1°
Spatial differentiation
3
m
Data refresh rate
10
Hz
Coverage
Road
monitoring profile: See the product’s user manual at
Area
monitoring profile: 2700 m2 (29000 sq ft) for persons
6100
m2 (65600 sq ft) for vehicles
Coexistence zone
Frequency
band: 60 GHz
Radius:
350 m (1148 ft)
Recommended
number of radars: up to 8
Radar controls
Multiple
detection zones, line crossing detection with one or two lines, exclude zones
with filters for short-lived objects, object speed, and object type,
configurable trigger duration
Radar
transmission on/off, grid opacity, zone opacity, color scheme, trail lifetime,
detection sensitivity, swaying object filter, small object filter, frequency
channel, reference map calibration with options to scale, pan, and zoom map
System on Chip model
Manufacturer’s
own chipset (8th gen)
Memory
2048
MB RAM, 8192 MB Flash
Compute capabilities
Deep
learning processing unit (DLPU)
Video compression
H.264
(MPEG-4 Part 10/AVC) Baseline, Main and High Profiles
H.265
(MPEG-H Part 2/HEVC) Main Profile
Motion
JPEG
Resolution
16:9:
2688x1512 to 160x90
16:10:
1280x800 to 160x100
4:3:
2016x1512 to 160x120
Frame rate
WDR:
Up to 25/30 fps (50/60 Hz) in all resolutions
No
WDR: Up to 50/60 fps (50/60 Hz) in all resolutions
Video streaming
Up
to 20 unique and configurable video streams
Controllable
frame rate and bandwidth
VBR/ABR/MBR
H.264/H.265
Low
latency mode
Video
streaming indicator
Signal-to-noise ratio
>55
dB
WDR
advanced
WDR imaging technology: Up to 120 dB depending on scene
Noise reduction
Spatial
filter (2D noise reduction)
Temporal
filter (3D noise reduction)
Image settings
Saturation,
contrast, brightness, sharpness, white balance, day/night threshold, local
contrast, tone mapping , exposure mode, exposure zones, defogging, compression,
dynamic text and image overlay, polygon privacy mask,target aperture
Scene
profiles: forensic, vivid, traffic overview, license plate
Audio features
Automatic
gain control
Speaker
pairing
Audio streaming
Two-way
(full duplex)
Noise
reduction
Audio input
10-band
graphic equalizer
Input
for external balanced or unbalanced microphone, optional 5 V microphone power
Digital
input, optional 12 V ring power
Balanced
or unbalanced line input
Input
through speaker pairing
Audio output
Line
output
Output
through speaker pairing
Audio encoding
24bit
LPCM, AAC-LC 8/16/32/48 kHz, G.711 PCM 8 kHz, G.726 ADPCM 8 kHz, Opus 8/16/48
kHz
Configurable
bitrate
Network protocols
IPv4,
IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP,
SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP®, SNMP v1/v2c/v3 (MIB-II),
DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, RTCP,
ICMP, DHCPv4/v6, ARP, SSH, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC
3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf), IEEE 802.1X (EAP-TLS),
IEEE 802.1AR
Application Programming
Interface
Open
API for software integration. application includes Native SDK and Computer
Vision SDK.
ONVIF®
Profile G, ONVIF® Profile M, ONVIF® Profile S, and ONVIF® Profile T,
specifications at onvif.org
Onscreen controls
Privacy
masks
Radar
picture-in-picture
Augmented
overlay (radar)
Media
clip
Edge-to-edge
Speaker
pairing
PTZ
camera pairing
Event conditions
Application
Audio:
audio clip playing
Device
status: above/below/within operating temperature, casing open, IP address
blocked, IP address removed, new IP address, live stream active, network lost,
ring power overcurrent protection, system ready, radar data failure:
interference, no data, tampering
Digital
audio input status
Edge
storage: recording ongoing, storage disruption, storage health issues detected
I/O:
digital input, manual trigger, virtual input
MQTT:
subscribe
Radar
motion
Scheduled
and recurring: schedule
Video:
average bitrate degradation, day-night mode, tampering
Event actions
Audio
clips: play, stop
Day-night
mode
Defog
mode
I/O:
toggle I/O once, toggle I/O while the rule is active
LEDs:
flash status LED
MQTT:
publish
Notifications:
HTTP, HTTPS, TCP and email
Overlay
text
Radar:
radar autotracking, radar detection
Recordings:
SD card and network share
SNMP
traps: send, send while the rule is active
Upload
of images or video clips: FTP, SFTP, HTTP, HTTPS, network share and email
WDR
mode
Built-in installation
aids
Traffic
camera installation assistant, pixel counter, remote zoom and focus, level
grid, leveling assistant
Applications
Included
object
analytics, scene metadata, video motion detection, speed monitor, manufacturer
Radar Integration for Microbus, active tampering alarm, audio detection,
orientation aid
Supported
License
plate verifier,
Support
for enabling installation of third-party applications
Object Analytics
Object
classes: humans, vehicles (types: cars, buses, trucks, bikes, other)
Scenarios:
line crossing, object in area, time in area, crossline counting, occupancy in
area
Up
to 10 scenarios
Key
features: detection sensitivity, object speed
Other
features: triggered objects visualized with trajectories, color-coded bounding
boxes and tables
Polygon
include/exclude areas
Perspective
configuration
ONVIF
Motion Alarm event
Scene metadata
Object
classes: humans, faces, vehicles (types: cars, buses, trucks, bikes), license
plates
Object
attributes: vehicle color, upper/lower clothing color, confidence, position,
speed, distance, direction, longitude and latitude, license plate information
Product markings
CSA,
UL/cUL, CE, RCM
Supply chain
TAA
compliant
EMC
CISPR
24, CISPR 35, EN 55035, EN 55032 Class A, EN 50121-4, EN 61000-3-2, EN
61000-3-3, EN 61000-6-1, EN 61000-6-2
Australia/New
Zealand: RCM AS/NZS CISPR 32 Class A
Canada:
ICES-3(B)/NMB-3(B)
USA:
FCC Part 15 Subpart B Class B
Safety
CAN/CSA
C22.2 No. 62368-1 ed. 3, IEC/EN/UL 62368-1 ed. 3, IEC/EN 62471 risk group 2, IS
13252
Environment
IEC
60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC
60068-2-78, IEC/EN 60529 IP66, IEC/EN 62262 IK10, NEMA 250 Type 4X, NEMA
TS 2 (2.2.7-2.2.9), ISO 21207 (Method B)
Wireless
EN
305550, EN 301489-1, EN 301489-3, EN 62311, FCC Part 15 Subpart C
Network
NIST
SP500-267
Cybersecurity
ETSI
EN 303 645
Edge security
Software:
Signed OS, brute force delay protection, digest authentication and OAuth 2.0
RFC6749 OpenID Authorization Code Flow for centralized ADFS account management,
password protection
Hardware:
cryptographic compute module cybersecurity platform
TPM
2.0 (CC EAL4+, FIPS 140-2 Level 2), secure element (CC EAL 6+), system-on-chip
security (TEE), Manufacturer's device ID, secure keystore, signed video, secure
boot, encrypted filesystem (AES-XTS-Plain64 256bit)
Network security
IEEE
802.1X (EAP-TLS, PEAP-MSCHAPv2), IEEE 802.1AE (MACsec PSK/EAP-TLS), IEEE
802.1AR, HTTPS/HSTS, TLS v1.2/v1.3, Network Time Security (NTS), X.509
Certificate PKI, host-based firewall
Casing
IP66-,
NEMA 4X- and IK10-rated
Aluminum
casing, weathershield (ASA) with black anti-glare coating
Color:
white NCS S 1002-B
For
repainting instructions, go to the product’s support page. For information
about the impact on warranty, go to /warranty-implication-when-repainting.
This
product can be repainted.
Power
Power
over Ethernet (PoE) IEEE 802.3at Type 2 Class 4
Typical
10 W, max 25.5 W
10–28
V DC, typical 9.5 W, max 25.5 W
Connectors
Network:
RJ45 10BASE-T/100BASE-TX/1000BASE-T PoE
I/O:
Terminal block for two supervised and two unsupervised configurable inputs /
digital outputs (12 V DC output, max load 50 mA)
Audio:
3.5 mm mic/line in, 3.5 mm line out
Serial
communication: RS485/RS422, 2 pcs, 2 pos, full duplex, terminal block
Power:
DC input, terminal block
IR illumination
IR
with power-efficient, long-life 850 nm IR LEDs
Range
of reach 50 m (164 ft) or more depending on the scene
Storage
Support
for microSD/microSDHC/microSDXC card
Support
for SD card encryption (AES-XTS-Plain64 256bit)
Recording
to network-attached storage (NAS)
For
SD card and NAS recommendations, refer to the manufacturer's webpage
Operating conditions
Temperature:
-40°C to 60 °C (-40 °F to 140 °F)
Start-up
temperature: -25 °C (-13 °F)
Maximum
temperature according to NEMA TS 2 (2.2.7): 74 °C (165 °F)
Humidity:
10–100% RH (condensing)
Wind
speed (sustained): 60 m/s (134 mph)
Storage conditions
Temperature:
-40 °C to 65 °C (-40 °F to 149 °F)
Humidity:
5–95% RH (non-condensing)
Dimensions
For
the overall product dimensions, see the dimension drawing in this datasheet.
Effective
Projected Area (EPA): 0.063 m2 (0.67 ft2)
Weight
5100
g (11.2 lb)
Box content

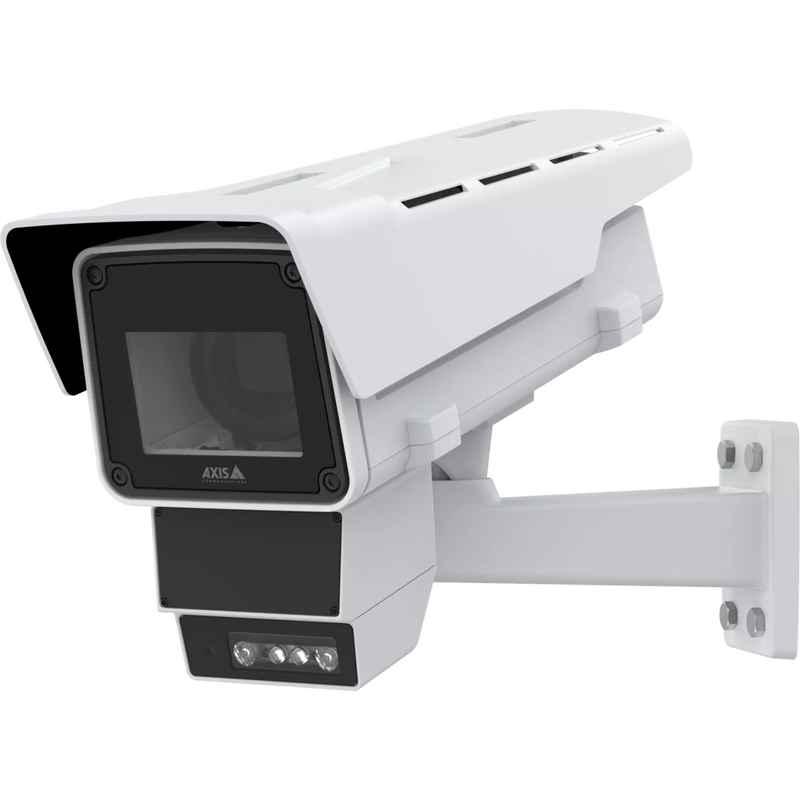

Camera,
weathershield, manufacturer TQ1003-E Wall Mount, installation guide, resistorx®
T20 tool, terminal block connectors, connector guard, cable gaskets, owner
authentication key
Languages
English,
German, French, Spanish, Italian, Russian, Simplified Chinese, Japanese,
Korean, Portuguese, Polish, Traditional Chinese, Dutch, Czech, Swedish,
Finnish, Turkish, Thai, Vietnamese
Warranty
5-year warranty
