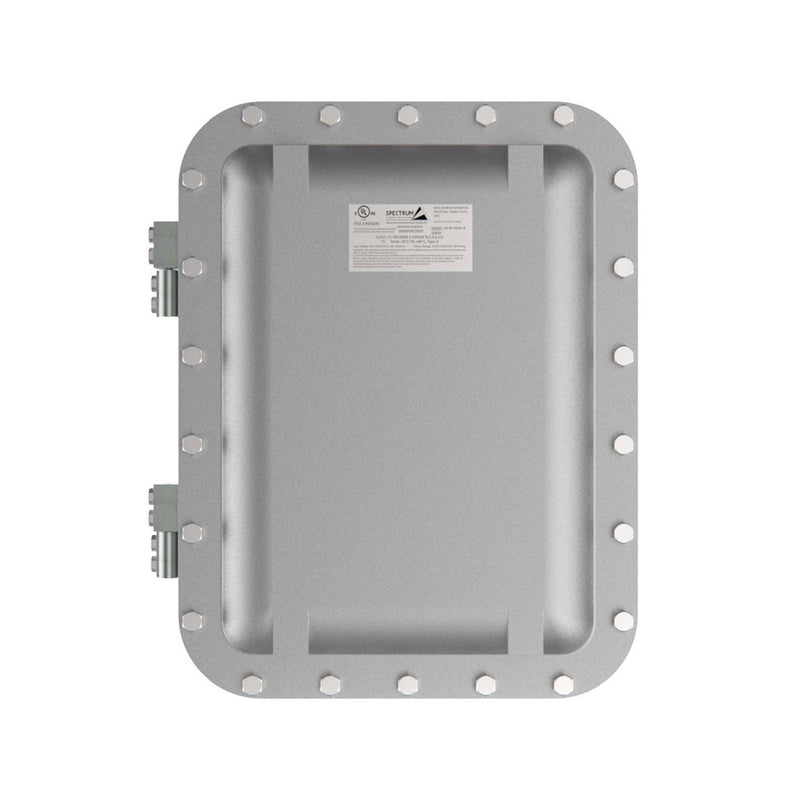

Spectrum EX-JB-T8504-R (Explosion-proof junction box)

Spectrum EX-JB-T8504-R - Explosion-proof junction box

Spectrum EX-JB-T8504-R houses the AXIS T8504-R Industrial PoE Switch is a 4-port managed industrial PoE++ Gigabit switch. In addition, the switch is equipped with two RJ45 and two SFP data ports that allows for extra devices to be connected. The switch uses the same intuitive administrator interface as AXIS T85 PoE Network Switch Series. The ruggedized switch is perfect for challenging environments when mounted inside a surveillance cabinet. It is designed to withstand shock, vibrations and temperatures from -20°C to +40°C (-4°F to +104°F), making it perfect for high demanding installations such as alongside highways and tunnels. UL Listed Class I II Div 1 Gr. BCDEFG T5.

Features:

• High Power Output: Delivers 60W per port with a substantial total power budget of 240W.
• High PoE 60W Compliance: Compliant with High Power over Ethernet (High PoE) standards, providing efficient power delivery.
• Rapid Ring for High Availability: Incorporates Rapid Ring functionality to ensure high availability and seamless performance.
• Dual DC Power Redundancy: Enhances reliability with dual DC power redundancy, minimizing the risk of power failures.
• NEMA TS-2 Compliance: Meets NEMA TS-2 standards, ensuring robust performance suitable for transportation systems.
• UL Listed: Holds UL Listing, guaranteeing safety and reliability in diverse applications.
• Class I/II, Division 1 Compliance: Complies with Class I/II, Division 1 standards, making it suitable for hazardous environments.
• Groups BCDEFG T5 Certification: Certified for Groups BCDEFG T5, meeting stringent safety standards for diverse industrial settings.


Network

• Security - Password protection, HTTPS encryption, VLAN
• Supported Protocols -  IPv4, IPv6, HTTP, HTTPS, SMTP, Bonjour, UPnP® , SNMP v1/v2c/v3, DNS, NTP, RTSP, TCP, UDP, IGMP, ICMP, DHCP, ARP, SSH, RADIUS, TACACS+, Syslog, IEEE 802.1X, 802.1Q (VLAN), LLDP, LLDP-Med, STP, MSTP, RSTP, LACP, RRPP
• Throughput -  11.9 Mpps
• Switch Capacity - 16 Gbps
• MAC Table - 8K

• Jumbo Frames - 9216 Bytes

General

• Switch -  AXIS T8504-R Industrial PoE Switch - Part number: 01633-001

• Dimensions -  444.5 x 342.9 x 215.9 mm ( 17 1/2 x 13 1/2 x 8 1/2 in. )

• Weight -  28.21 kg ( 62.2 lb )

• Material - Aluminum

• Operating Conditions: -20°C to +40°C ( -4°F to +104°F )

• Storage Conditions:  -40°C to +85°C (-40°F to 185°F)

• UL Listed File Number -  E481600

• Input Voltage -  100-240VAC/VDC , 10A, 50/60 Hz

• Output Voltage -  57VDC , 60W/PORT 240 W Max

• PoE Class -  Power over Ethernet Plus (PoE+) IEEE 802.3at Type 2 Class 4

• PoE Output -  Up to 60 W per port Power budget: 240 W

• HS Code - 8529.90.3800


Explosion-proof Certifications:
Class I/II, Division 1, Groups BCDEFG T5

Approvals:

EMC
EN 55032 Class A
EN 55024
FCC part 15 Subpart B Class A
ICES-003 Class A
VCCI Class A
RCM AS/NZS CISPR 32 Class A
EN 50121-4
EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN
61000-6-2, EN 61000-6-3, EN 61000-6-4
IEC 62236-4

Safety
IEC/EN/UL 60950-1

Environment
IEC 60068-2-6, IEC 60068-2-27, 60068-2-31 (Free fall - Procedure 1) NEMA TS-2-2003 v02.06, subsection
2.2.8 and 2.2.9

Management Software -  AXIS Device Manager

Warranty - 5-year limited warranty
