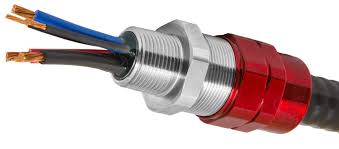

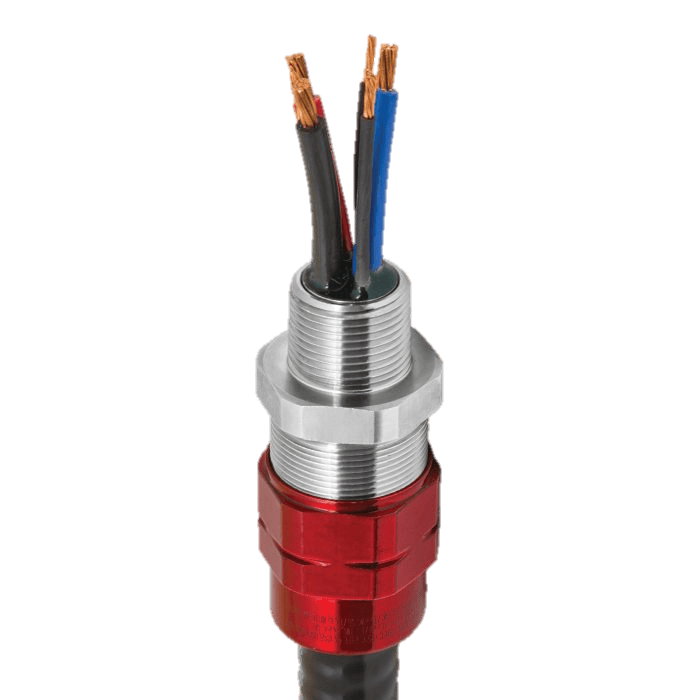

GLOBALLY APPROVED, HAZARDOUS (CLASSIFIED)
LOCATION BARRIER CABLE GLAND FOR MC, MC-HL, INTERLOCKED & TECK ARMORED CABLES
Div 1 Gland For use with Paige Datacom GameChanger Part Number: 258802404.
Features:
- RapidEx liquid pour sealing system reduces installation time
- Simplified two part design
- Compact slim profile
- Independent sealing and armor clamping
- Simple, sequential installation process
- Low impedance copper plated stainless steel 360° grounding spring
- Disconnectable, union design feature
- -60°C to +85°C (-76˚F to +185˚F)
- Globally marked, UL, cCSAus, IECEx, ATEX and UKEX
Specifications:
- DESIGN SPECIFICATION BS 6121:Part 1:1989, IEC 62444, EN 62444
- MECHANICAL CLASSIFICATION* Impact = Level 8, Cable Anchorage = Type D
- ENCLOSURE PROTECTION IK10 to IEC 62262 (20 joules) Brass and Stainless Steel only
- INGRESS PROTECTION RATING** IP66
- NEMA RATING** Type 4X
- CABLE TYPE Corrugated & Interlocked Metal Clad Armor (MC) or TECK90, Continuously Welded Metal
Clad Armor (MC-HL), ACIC-HL, ACWU90-HL, RC90-HL, RA90-HL - ARMOR CLAMPING Low Impedance Copper Plated Stainless Steel 360° Grounding Spring
- JACKET SEALING TECHNIQUE CMP Load Retention Seal
- SEALING AREA(S) RapidEx Liquid Resin, Cable Outer Jacket
- CABLE GLAND MATERIAL Copper Free (<0.4%) Aluminum, Stainless Steel, Electroless Nickel Plated Brass
